Nano Star Trackers
Nano Star Trackers
Stunning Capabilities
Nano Star Trackers
A low SWaP-C solution with stunning capabilities, Blue Canyon’s nano star trackers feature lost-in-space star identification as well as a user-friendly RS-422 or RS-485 interface. With proven heritage for even the toughest mission, our trackers are EMI / EMC tested to MIL-STD-461 and shock test qualified.
-

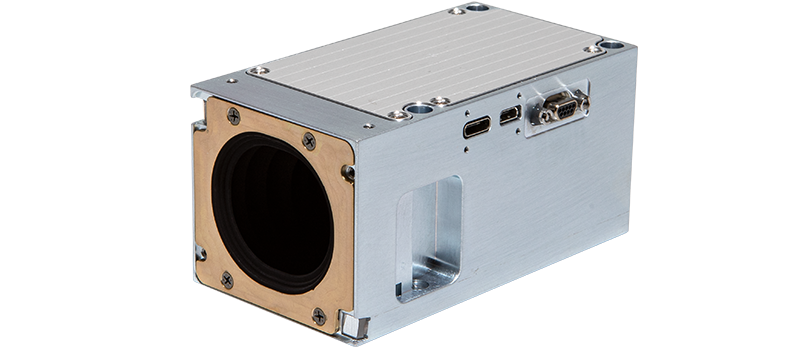

Standard NST
Mass
.35 kg
Dimensions
10 x 5 x 5.5 cm
Accuracy
Cross-Boresight 6 arcsec / About-Boresight 40 arcsec
-

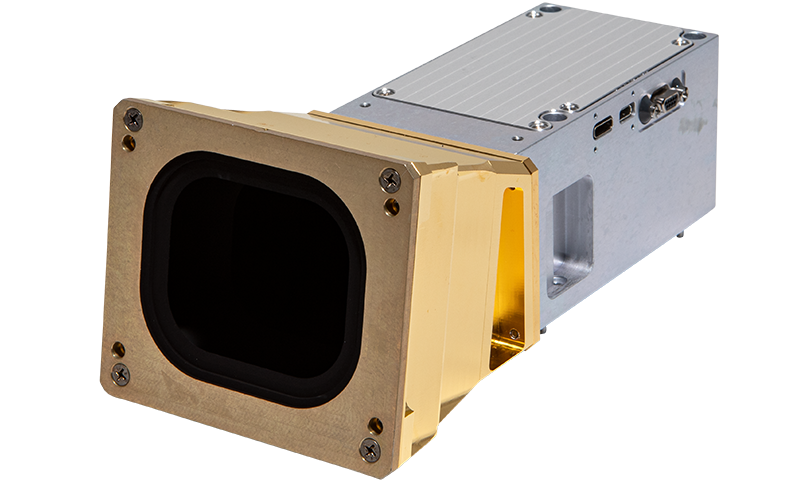

Mid-Extension NST
Mass
.45 kg
Dimensions
17 x 8.5 x 7 cm
Accuracy
Cross-Boresight 1 arcsec / About-Boresight 10 arcsec
-
Full Extension NST
Mass
.85 kg
Dimensions
25 x 10 x 10 cm
Accuracy
Cross-Boresight 1 arcsec / About-Boresight 10 arcsec
Industry-Trusted Components
Nano Star Trackers Proven Heritage
Manufactured
550
On-Orbit
200
